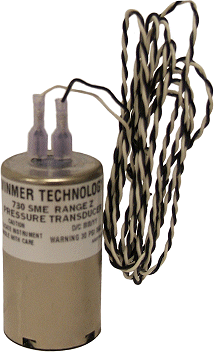

730(4) SME - Internal Splice Case Pressure Transducer
- Mounting inside any Splice Case location to monitor individual pressure locations
- 730 Pressure Range: 0-9.5PSI
- 734 Pressure Range: 0-95Kpa (0-13.8PSI)
- Pressure Connection: None
- Electrical Connection: One 22AWG Solid Pair, 6 ft in length
- Dimensions/Weight: 1.3" Diameter x 2.5" Long/3.5 Oz.
- Case Material: Nickel Plated Steel
- Overpressure: 30PSIG (44.7 PSIA) Maximum
- Accuracy: ±0.25PSI
- Operational Life: 250,000 Cycles (to specified accuracy)
- Ambient Temperature Range: -20°F to +130°F
Resistance Output Vs. Input Pressure |
|||
|
Pressure (PSI) |
Nominal Output Resistance (Ohms) |
Pressure (PSI) |
Nominal Output Resistance (Ohms) |
|
0.0 |
100,000 |
5.0 |
301,000 |
|
0.5 |
110,000 |
5.5 |
344,000 |
|
1.0 |
122,000 |
6.0 |
400,000 |
|
1.5 |
135,000 |
6.5 |
468,000 |
|
2.0 |
150,000 |
7.0 |
568,000 |
|
2.5 |
166,000 |
7.5 |
698,000 |
|
3.0 |
186,000 |
8.0 |
898,000 |
|
3.5 |
208,000 |
8.5 |
1,200,000 |
|
4.0 |
232,000 |
9.0 |
1,820,000 |
|
4.5 |
265,000 |
9.5 |
3,820,000 |
